Rubber soft joint

Rubber soft joint

Time:2015/8/13

Hebei Baorui rubber products Co. Ltd.

Add:Jingxian County rubber base in Hengshui, Hebei

Tel:+86-318-4327555

Fax:+86-318-4327999

Mobile:+86-15028778999

PRODUCT DESCRIPTION

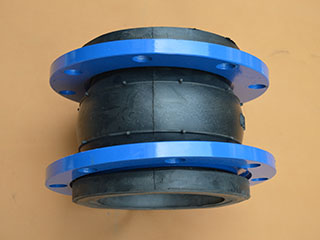

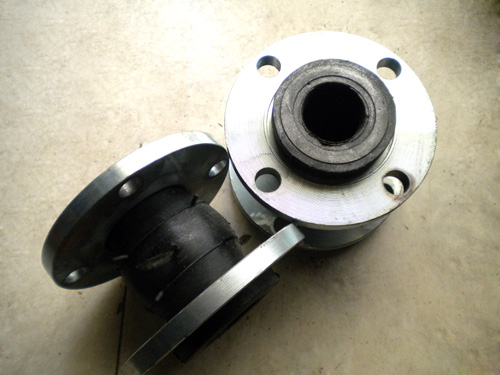

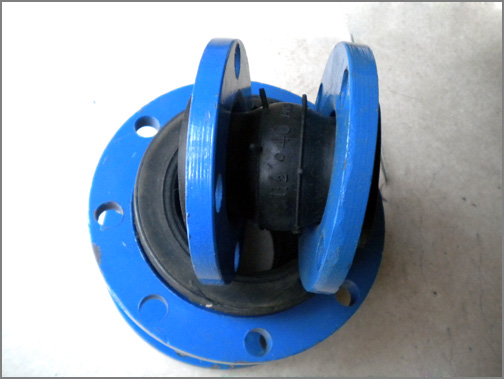

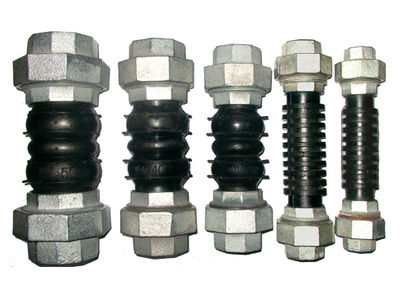

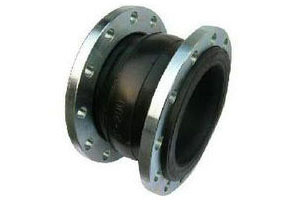

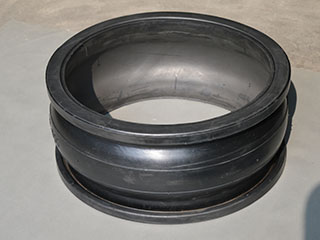

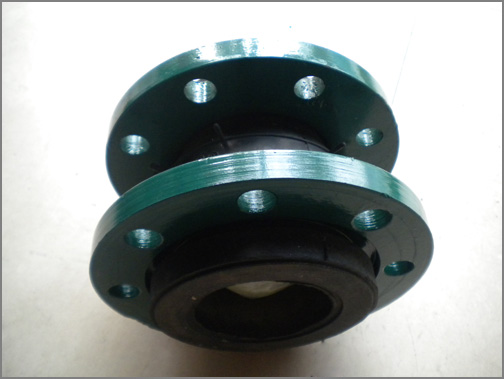

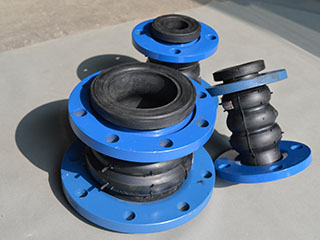

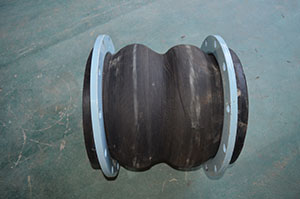

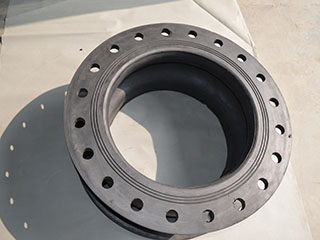

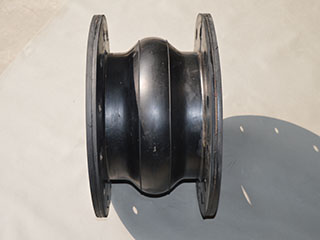

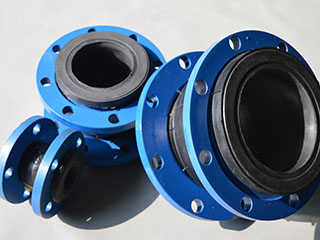

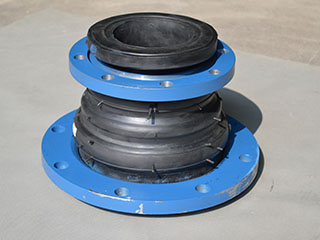

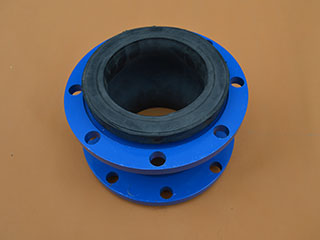

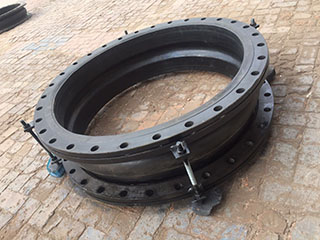

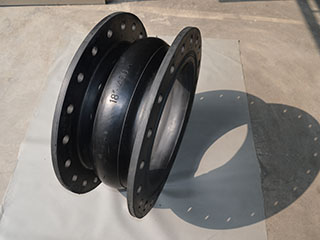

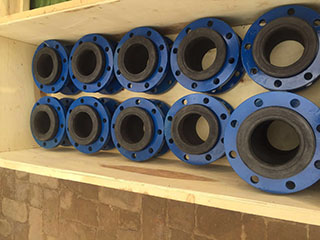

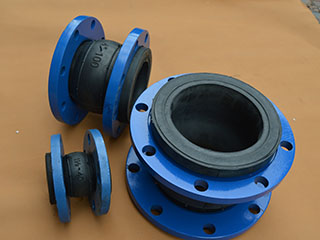

A hollow rubber product used for flexible connections between metal pipes. Flexible single ball rubber flexible connector is also called soft rubber pipe joint, flexible rubber joint, soft rubber joints, rubber joints, high-pressure rubber joints, rubber shock absorber, compensator. According to the connection way, we divide the loose flange type, the fixed flange type and the threaded type 3. According to the structure, they can be divided into 5 kinds: single sphere, double sphere, different diameter body, eccentric eccentric body, bending sphere and fan coil pipe. The pipe shaped rubber parts are composed of inner and outer rubber, cord layer and wire ring. After vulcanization, they are combined with metal flanges or parallel joints. This product can reduce vibration and noise, and can compensate for thermal expansion and contraction caused by temperature change, which is applied to various pipe systems.

DN

Length

Axial Compression

Axial Tension

Transverse Tension

Deflection Angle

32

95

8

4

8

15

40

95

8

5

8

15

50

105

8

5

8

15

65

115

12

6

10

15

80

135

12

6

10

15

100

150

18

10

12

15

125

165

18

10

12

15

150

180

18

10

12

15

200

210

25

14

15

15

250

230

25

14

15

15

300

245

25

14

15

15

350

255

25

15

15

15

400

255

25

15

15

15

450

255

25

15

15

15

500

255

25

16

22

12

600

260

25

16

22

12

700

260

25

16

22

12

800

260

25

16

22

12

900

260

25

16

22

12
