PRODUCT DESCRIPTION
|
|
|
|
|
|
|
|
![]() |
![]() |
1、Product structure

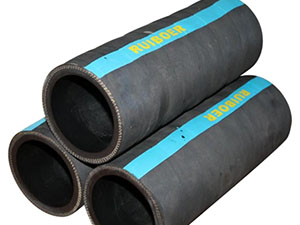

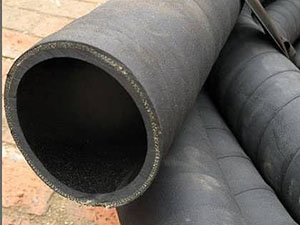

The rubber pipe is composed of the inner rubber layer, the multilayer sandwich cloth winding layer and the outer rubber layer.

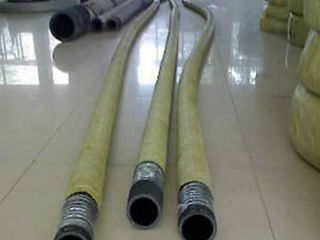

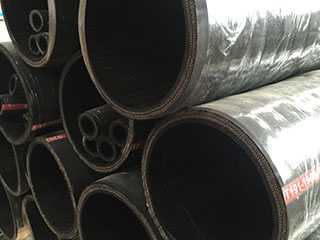

The tape suction hose is composed of the inner rubber layer, the multilayer sandwich cloth winding layer, the spiral steel reinforced layer and the outer rubber layer.
2、Product features
The hose has the characteristics of small outer diameter tolerance, excellent oil resistance and heat resistance, light weight, flexible tube and durable service. The minimum burst pressure of rubber hose is four times of the working pressure.
3、Product use: various types of cloth conveying hose (or attraction) is based on the different transport medium using corresponding materials, product structure reasonable design, excellent quality, durable, is a kind of used to transport, suction (negative pressure) flexible hose of liquid viscous fluid and solid powder materials like medium. According to the purpose as the cloth, cloth conveying hose suction hose.
① water transport hose: suitable for the general water transport, at -20 C --45 C environment.
② air hose: suitable for transporting compressed air and inert gas, at -20 C --45 C environment.

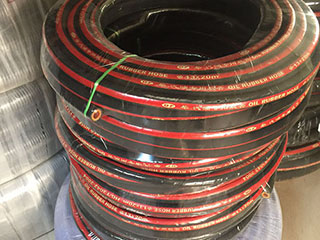

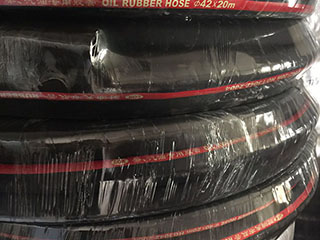

③ oil resistant rubber hose: suitable for transportation of conventional oil at -20 C --45 C environment.

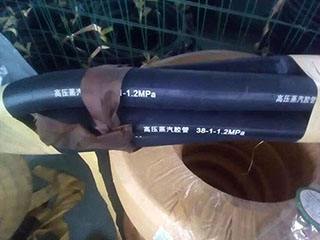

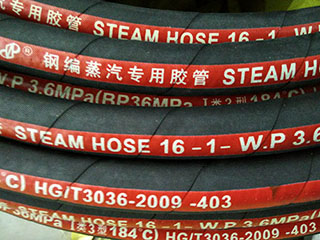

④ heat-resistant rubber hose: suitable for transporting water below 100 centigrade. Steam hose: it is suitable for transporting hot water or saturated steam below 170 C.
⑤ Dilute acid and alkali rubber hose: the dilute acid and alkali solution with the concentration of less than 40% is used in the environment of -20 C --45 C.
⑥ sandblasting rubber hose: suitable for metal surface as air pressure sandblasting and grinding and grinding.
⑦ suction drainage, oil hose: working pressure 1.0-1.5MPa (4 times safety factor).
⑧ transport, food: for room temperature lower suction hose suction beer beverage of edible oil and other liquid, and the taste and color will not change, comply with food hygiene requirements for rubber.
4、Technical parameters of general clamp cloth conveying hose and suction hose
Inner diameter(mm) |
The layer number of fabric |
Diameter of screw wire(mm) |
Pipe length(mm) |
The length of the hose(mm) |
||||
Nominal size |
tolerance |
|||||||
Size(mm |
tolerance |
Size(m) |
Tolerance(mm |
|||||
38 |
1.2 |
2 |
3 |
2.0 |
75 |
10 |
10 |
150 |
51 |
1.2 |
3 |
4 |
2.6 |
100 |
15 |
10 |
150 |
64 |
1.5 |
3 |
4 |
2.6 |
100 |
15 |
10 |
150 |
76 |
1.5 |
4 |
5 |
2.6 |
100 |
15 |
10 |
150 |
89 |
1.5 |
4 |
5 |
3.2 |
100 |
15 |
10 |
150 |
102 |
2.0 |
4 |
5 |
3.2 |
125 |
20 |
10 |
150 |
127 |
2.0 |
5 |
6 |
3.2 |
125 |
20 |
10 |
150 |
152 |
2.0 |
5 |
6 |
4.0 |
150 |
20 |
10 |
150 |
203 |
2.5 |
6 |
7 |
5.0 |
200 |
25 |
10 |
150 |
254 |
2.5 |
7 |
8 |
5.0 |
200 |
25 |
10 |
150 |
305 |
2.5 |
7 |
8 |
5.0 |
250 |
25 |
10 |
150 |
