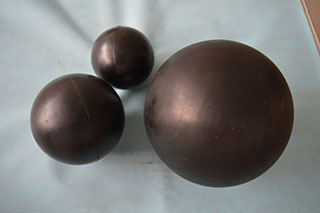

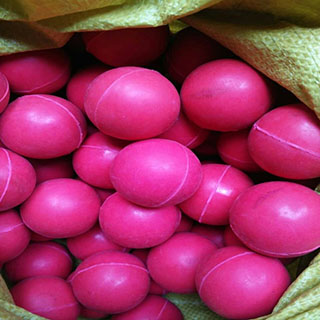

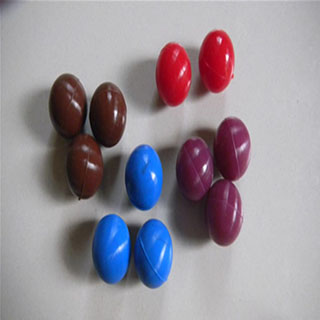

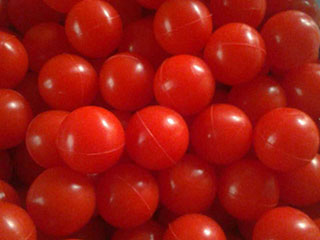

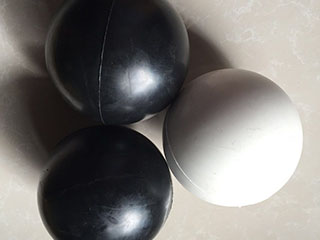

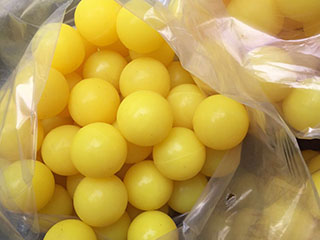

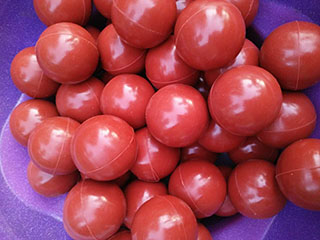

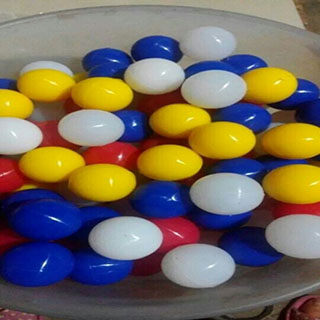

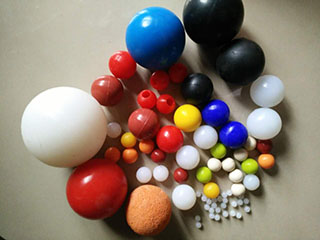

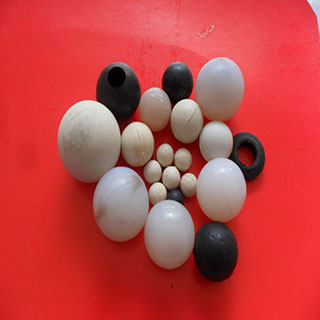

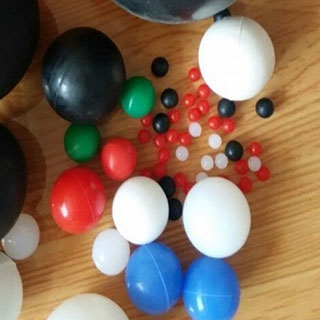

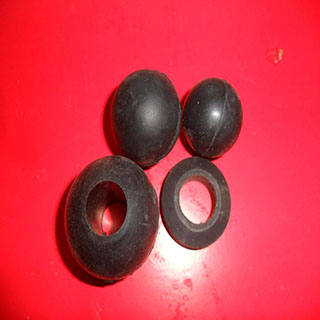

Rubber ball & Silicone rubber ball

Rubber ball & Silicone rubber ball

Time:2015/6/15

Hebei Baorui rubber products Co. Ltd.

Add:Jingxian County rubber base in Hengshui, Hebei

Tel:+86-318-4327555

Fax:+86-318-4327999

Mobile:+86-15028778999

PRODUCT DESCRIPTION

 Rubber ball or silicone rubber ball is used in medicine, mineral, machinery, food, metal metallurgy, vibrating screen and other industries.
  Specifications(mm): 10, 15, 20, 20, 25, 28, 30, 35, 40, 45, 50, and 100, etc. Besides, it can be designed and made according to the requirements. It is main parts of vibration screening and mechanical anti blocking netting.

  White (natural rubber): rubber ball with a diameter of  Phi 10mm, Phi 11mm,Phi 15mm,Phi 16mm, Phi 17mm, Phi 18mm, Phi 19mm, Phi 20mm, Phi 22mm, Phi 24mm, Phi 25mm, Phi 28mm, Phi 30mm, Phi 32mm, Phi 35mm, Phi 40mm, Phi 50mm, Phi 83mm, Tan (NBR); EPDM rubber; polyurethane rubber; silicone rubber (colorless).

  Vibrating screen bouncing balls is an indispensable part of the sieve, it is jumping up and down without stop  by force of punching plate when the vibration sieve working. It hit the sieve screen back and forth, therefore it can reach the purpose of cleaning sieve screen and improving penetration rate.

  Material classification: nitrile rubber ball, natural rubber ball, styrene butadiene rubber ball, neoprene rubber ball, EPDM rubber ball, silicone rubber ball, viton rubber ball and polyurethane rubber ball.

  Appearance and application scope of rubber ball:
  1, the hole is uniform and the size of the stoma is basically close.

3. Application of water temperature: maximum to 140 degrees C

4. Pipe material: copper tube, stainless steel tube and titanium tube.

5. The properties of rubber ball: soft, medium, medium and hard.

  Technical index of rubber ball

  Number index name value
  1 the tensile strength is more than 200 kilograms per square centimeter

2 permanent deformation is less than or equal to 10%

3 abrasion reduction less than 0.8 square centimeters per kilometer

4 elongation rate is more than 400%

  7 the water expansion coefficient is soaked in seawater or fresh water for 72 hours, and the diameter of the rubber ball is not more than 1 millimeters.

8 hardness 20-90SH
